Thermostat 230V XH W3001

Thermostat 230V XH W3001 - description

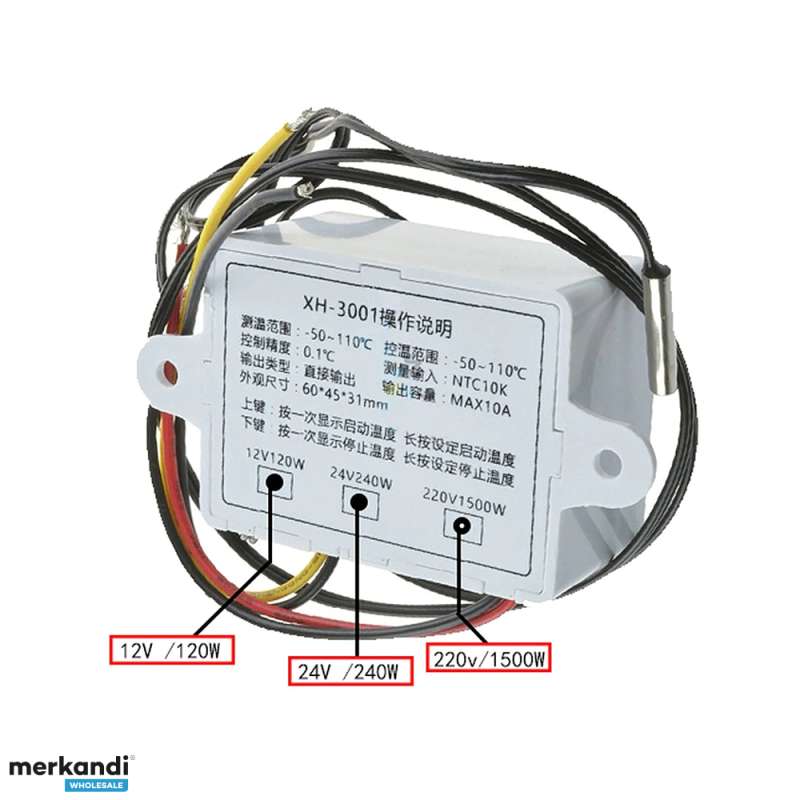

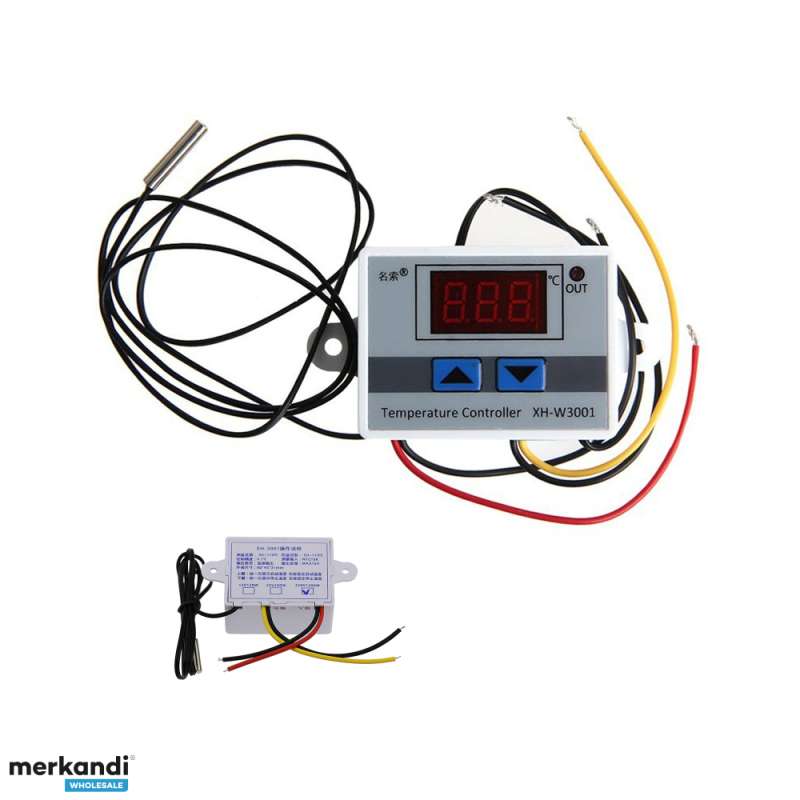

TEMPERATURE CONTROLLER ELECTRONIC THERMOSTAT 230V XH-W3001 AC110-230V The W3001 temperature controller enables the control of various electrical devices such as: heating pumps, water pumps, circulation pumps, etc. A simple and reliable system for temperature control. The controller can operate in both "cooling" and "heating" modes, making it a very versatile circuit. Technical data: Input voltage (power supply): AC 110-230V Temperature measurement: -50°C - +110°C Maximum relay load current: 1500W Temperature measurement resolution: 0.1°C (up to 99.9°C) Temperature refresh rate: 0.5s Used sensor: NTC10K Temperature measurement probe: waterproof Cable length with probe: 100cm Length of other cables: 8-10cm Display: LED 3 digits Display color: red Housing dimensions without mounts: 60 x 45 x 31 mm Hole distance in mounts: 73 mm Programming: Setting the switching-on temperature of the device connected to the controller (start): Press and hold the ^ button for 3 seconds to activate the temperature editing mode - the screen should start flashing. During the editing mode, we can set the desired temperature using the ^ and ˇ buttons. After setting the temperature, do not touch the buttons for 3 seconds so that the set temperature is memorized. Setting the switching-off temperature of the device connected to the controller (stop): Press and hold the ˇ button for 3 seconds to activate the temperature editing mode - the screen should start flashing. During the editing mode, we can set the desired temperature using the ^ and ˇ buttons. After setting the temperature, do not touch the buttons for 3 seconds so that the set temperature is memorized. To check the set switching-on temperature (start) or target temperature (stop) press the button or once. The switching-on temperature ^START lower than the switching-off temperature ˇSTOP - HEATING MODE The switching-on temperature ^START higher than the switching-off temperature ˇSTOP - COOLING MODE. Red wire: power supply (black - neutral). Yellow wire: receiver, whose operation the thermostat is to control (black - neutral).

---
